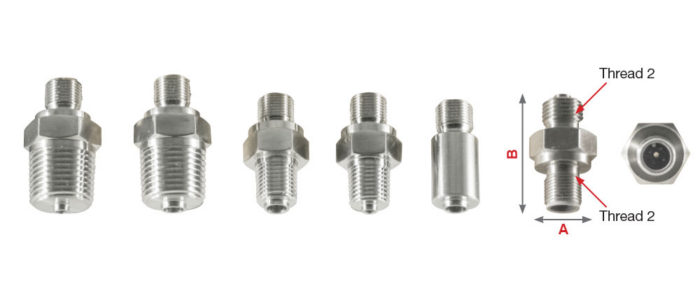

Nipples

nipples-group
Part No. Thread 1 Thread 2 to suit tube Material A B
N13116 1/2" BSPP 1/8" BSPP 6.0 mm SS 316 27 mm 47 mm
N131316 1/2" BSPP 1/2" BSPP 6.0 mm SS 316 24 mm 47 mm
N131318 1/2" BSPP 1/2" BSPP 8.0 mm SS 316 24 mm 47 mm
N131336 1/2" NPT 1/2" NPT 6.0 mm SS 316 22 mm 47 mm
N131338 1/2" NPT 1/2" NPT 8.0 mm SS 316 22 mm 47 mm
N131216 1/2" BSP 1/4" BSP 6.0 mm SS 316 24 mm 47 mm
N131416 1/2" BSP 3/4" BSP 6.0 mm SS 316 30 mm 50 mm
N171716 M24 x 1.5 M24 x 1.5 6.0 mm SS 316 27 mm 50 mm
N171718 M24 x 1.5 M24 x 1.5 8.0 mm SS 316 27 mm 50 mm
N171719 M24 x 1.5 M24 x 1.5 9.0 mm SS 316 27 mm 50 mm
N1717110 M24 x 1.5 M24 x 1.5 10.0 mm SS 316 27 mm 50 mm
N1717112 M24 x 1.5 M24 x 1.5 12.0 mm SS 316 27 mm 50 mm
N17101316 1/2" BSP M10 x 1 6.0 mm SS 316 27 mm 47 mm
N17101326 M10 x 1 1/4" BSP 6.0 mm SS 316 19 mm 30 mm
N133336 1/2 NPT 1/2 NPT 6mm SS 316
N133338 1/2 NPT 1/2 NPT 8mm SS 316
N133330 1/2 NPT No Bore SS 316
N131310 1/2 BSPP 1/2 BSPP 10mm SS 316
N1433310 3/4NPT 1/2 NPT 10mm SS 316
N1710313 M10x1 1/2" BSPP 3mm SS 316
N1724316 M24x1.5 1/2" BSPP 6mm SS 316
N1724319 M24x1.5 1/2" BSPP 9mm SS 316
N331216 1/2 BSPP 1/4" BSPP 6mm TEFLON
N331316 1/2 BSPP 1/2 BSPP 6mm TEFLON

BSPP Plug

BSPP-Plug-1-2
BSPP-Plug-1-4
Part No. To suit tube Thread Material A B
P1316 6 mm 1/2” BSPP SS 316 24 mm 27 mm
P1318 8 mm 1/2” BSPP SS 316 24 mm 27 mm
P13110 10 mm 1/2” BSPP SS 316 24 mm 27 mm
P1213 3 mm 1/4” BSPP SS 316 12 mm 27 mm
P1216 6 mm 1/4” BSPP SS 316 12 mm 27 mm
P1716 6 mm M24 x 1.5 SS 316 27 mm 21 mm
P1719 9 mm M24 x 1.5 SS 316 27 mm 21 mm
P1718 8 mm M24 x 1.5 SS 316 27 mm 21 mm
P1316A 6 mm 1/2” BSPP SS 316 27 mm 30 mm
P1310 No bore 1/2" BSPP SS 316 24 mm 23 mm
P1316-20 6 mm 1/2" BSPP SS 316 24 mm 20 mm
P1318-20 8 mm 1/2" BSPP SS 316 24 mm 20 mm
P1113 3mm 1/8 BSP SS 316
P1114 4mm 1/8 BSP SS 316
P1116 6mm 1/8 BSP SS 316
P1133 3mm 1/8" NPT SS 316
P1136 6mm 1/8" NPT SS 316
P1218 3 mm 1/4” BSPP SS 316 12 mm 27 mm
P1236 6mm 1/4 NPT SS 316
P13112 12mm 1/2" BSPP SS 316 24mm 27 mm
P13116 16mm 1/2" BSPP SS 316 24mm 27 mm
P1313 3mm 1/2" BSPP SS 316 24mm 27 mm
P1319 9mm 1/2" BSPP SS 316 24mm 27 mm
P1336 6mm 1/2 NPT SS 316
P1338 8mm 1/2 NPT SS 316
P1339 9mm 1/2 NPT SS 316
P1416 6mm 3/4" BSPP SS 316
P1418 8mm 3/4" BSPP SS 316
P1616 6mm 3/8" BSP SS 316
P1613 3mm 3/8" BSP SS 316
P1618 8mm 3/8" bsp SS 316
P17106 6mm M10x1 SS 316

Nipples Barrel Type

SS316-Nipples
Part No. Material Length Thread 1 Thread 2
BN12323-70 SS 316 70 mm 1/2” NPT 1/2” NPT
BN12323-76 SS 316 76 mm 1/2” NPT 1/2” NPT
BN12323-95 SS 316 95 mm 1/2” NPT 1/2” NPT
BN413333 Stainless steel union 1/2” NPT 1/2” NPT

Unions

SS316-Unions-2
Part No. Material Thread 1 Thread 2
BN413333 SS 316 1/2” NPT 1/2” NPT
*BN41322 SS 316 1/2” NPT 1/2” BSPT

*with teflon seal

Lock Nut SS316

Lock-nut
Part No. Thread Hex Thickness
CFL178 M8 x 1 11.2 2.5
CFL131 1/2" BSP 24 5
CFL111 1/8"

*with teflon seal

Olives PTFE

PTFE-Olives
Part No. A to suit tube
CF-0-PTFE-1.5 1.5 mm
CF-O-PTFE-2 2.0 mm
CF-0-PTFE-3 3.0 mm
CF-O-PTFE-4 4.0 mm
CF-O-PTFE-4.5 4.5 mm
CF-O-PTFE-5 5.0 mm
CF-0-PTFE-6 6.0 mm
CF-0-PTFE-8 8.0 mm
CF-O-PTFE-9 9.0 mm

Stainless Steel Converters

stainless-steel-converters-group
Part No. Thread 1 Thread 2 to suit tube Material A C B
R1-F31-M31-8 1/2” BSP 1/2” BSP 8.0 mm SS 316 24 47 25
R1-F31-M31-10 1/2" BSP 1/2" BSP 10.0 mm SS 316 24 47 25
R1-F31-M31-12 1/2" BSP 1/2" BSP 12.0 mm SS 316 24 47 25
R1-F33-M33-6 1/2" NPT 1/2" NPT 6.0 mm SS 316 27 47 25
R1-F33-M33-8 1/2" NPT 1/2" NPT 8.0 mm SS 316 27 47 25
R1-F31-M41-6 1/2" BSP 3/4" BSP 6.0 mm SS 316 27 47 25
R1-F31-M41-8 1/2" BSP 3/4" BSP 8.0 mm SS 316 27 47 25
R1-F33-M43-8 1/2" NPT 3/4" NPT 8.0 mm SS 316 27 47 25
R1-F33-M53-8 1/2" NPT 1" NPT 8.0 mm SS 316 36 50 25
