Kapton cable

Please send your enquiries with specified dimensions to [email protected].

  Type mm
  Type K 1/0.5mm
  Type K 1/0.2mm

Thermocouple Cables

PVC Temperature up to 105°C

fire sleeve
Fire Sleeve - Read more
Fire Sleeve Datasheet
  Inches mm Dash #
  1/4 6 -4
  5/16 8 -5
  3/6 10 -6
  7/16 11 -7
  1/2 13 -8
  5/8 16 -10
  3/4 19 -12
  7/8 22 -14
  1 26 -16
  1 1/8 29 -18
  1 1/4 32 -20
  1 3/8 35 -22
  1 1/2 38 -24
  1 5/6 41 -26
  1 3/4 44 -28
  1 7/8 48 -30
  2 51 -32
  2 1/4 57 -36
  2 2/5 60 -38
  2 1/2 64 -40
  2 5/8 67 -42
  2 3/4 70 -44
  2 7/8 73 -46
  3 76 -48
  3 1/4 83 -52
  3 1/2 89 -56
  3 3/4 95 -60
  4 102 -64
  4 1/2 114 -72
  4 3/4 121 -76
  5 127 -80
  6 152 -96
Flex Thermocouple Cable
Part No. Construction Wire Size Cross section Insulation T/C Type Std
CK117021FP Flat Pair 7 / 0.2 0.22 mm PVC K IEC
CN117021FP Flat Pair 7 / 0.2 0.22 mm PVC N IEC
CT117021FP Flat Pair 7 / 0.2 0.22 mm PVC T IEC

PFA Temperature up to 260°C

Flex Thermocouple Cable
Part No. Construction Wire Size Cross section Insulation T/C Type Std
CK227021FP Flat Pair 7 / 0.2 0.22 mm PFA K IEC
C3227021FP Flat Pair 7 / 0.2 0.22 mm PFA j IEC
CN227021FP Flat Pair 7 / 0.2 0.22 mm PFA N IEC
CT22702FP Flat Pair 7 / 0.2 0.22 mm PFA T IEC
CT221027FP Flat Pair 1/0.127 0.8x0.5 mm PFA T IEC
CN256702I-4.6 Round 7 / 0.2 4.6mm OD PFA+Screen N IEC

Twin twisted single pair cables PFA up to 260°C

Flex RTD Twisted Cables
Part No. Construction Wire Size Cross section Insulation T/C Type Std
CK103TP Twisted Pair 1 / 0.315 mm 0.08 mm PFA K IEC
CK702TP Twisted Pair 7 / 0.2 mm 0.22 mm PFA K IEC
CK102TP Twisted Pair 1 / 0.2 mm 0.03 mm PFA K IEC

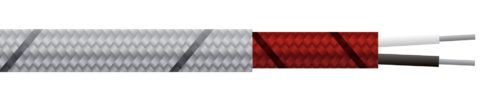

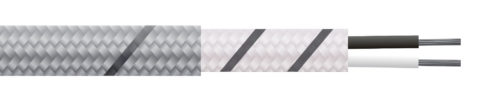

Fibre Glass Cables With Briad

Fiber Glass Cables With Braid
Part No. Construction Wire Size Cross section Insulation Screen T/C Type Std
CJ335702 Round 7 / 0.2 mm 0.22 mm FG/Screen/FG Tin Plate cu J IEC
CK335702 Flat Pair 7 / 0.2 mm 0.22 mm FG/Screen/FG Tin Plate cu K IEC
CK335702-SIS ROUND 7 / 0.2mm 0.22 mm FG TIGHT braid K IEC
CK3303 Flat Pair 0.315mm 1.4 x 2.2mm FG K
CJ335702-TCD ROUND 7/0.2mm 0.22 FG Tin Cu braid J DIN
CJ335702-SI Flat Pair 7/0.2mm 0.22 FG TIGHT braid J IEC
CJ335702-SAMP Round 7/0.2mm 0.22 FG T-304 BRAID J IEC
CRTD335702-4 Round 4x7/0.2 3.5mm OD FG/FG SS RTD IEC
CRTD335702 Roun 3x7/0.2 3.1mm OD FG/G SS RTD IEC
CRTD335702-2 Flat Pair 2x7/0.2 3mm OD FG SS RTD IEC

Silicone Cables

Silicone Cables
Part No. Construction Wire Size Cross section Insulation T/C Type Std
CK26702IFP Flat Pair / Round 7 / 0.2 mm 0.22 mm PFA / Silicone K IEC
CK26702AFP Flat Pair / Round 7 / 0.2 mm 0.22 mm PFA / Silicone K ANSI

Silicone Cables T/C

Silicone Cables
Part No. Cores Insulation Screen Conductors OD Construction Outer Jacket Colour
CJ26702I 2 FEP/Silicone 7/0.2mm 3.8mm J IEC
CK66702 2 Silicone/Silicone 7/0.2mm 4.5mm K IEC
CK665702I 2 Silicone/Silicone/Ni Cu Ni Cu 7/0.2mm 4mm K IEC
CK66702I-4.8 2 Silicone/Silicone 7/0.2mm 4.8mm K IEC
CK656702 2 Silicone/Screen/Silicone Tin Cu 7/0.2mm 4.3mm K IEC
CK66702A-4.8 2 Silicone/Silicone 7/0.2mm 4.8mm K ANSI
CN665702I 2 Silicone/Silicone/Ni Cu Ni Cu 7/0.2mm 4mm N IEC
CN66702I-4.8 2 Silicone/Silicone 7/0.2mm 4.8mm N IEC

RTD Cables

PFA Temperature up to 260°C

Flex RTD Cables
Part No. Cores Insulation Screen Conductors OD Construction Outer Jacket Colour
CRTD33702 3 FG / FG / Braid Ni Cu 7 / 0.2 mm 3.1 mm Twisted Silver
CRTD252701-4 4 PFA / Screen / PFA Ni Cu 7 / 0.1 mm 2.5 mm Twisted Black
CRTD25702-3 3 PFA / Screen / PFA Ni Cu 7 / 0.2 mm 3.2 mm Twisted White
CRTD25702-4 4 PFA / Screen / PFA Ni Cu 7 / 0.2 mm 3.4 mm Twisted White
CRTD22702-3 3 PFA / PFA - 7 / 0.2 mm 2.8 mm Twisted White
CRTD22702-4 4 PFA / PFA - 7 / 0.2 mm 3.2 mm Twisted White
CRTD22702FP2 2 PFA / PFA - 7 / 0.2 mm 3.2 mm Flat Pair White
CRTD2527023T 3 PFA / PFA / Screen Ni Cu 7 / 0.2 mm 3.2 mm Twisted Transparent
CRTD252702-6B 6 PFA/TinCu/PFA CU TIN 7 / 0.2 mm 4.1mm Round BLACK
CRTD252702-4 4 PFA/TinCu/PFA CU TIN 7 / 0.2 mm 3.3mm Round WHITE
CRTD252702-3 3 PFA CU TIN 7 / 0.2 mm 3.2mm Round WHITE
CRTD22702FP-2 2 PFA/PFA 7 / 0.2 mm 2.5mm x 1.5mm Flat Pair WHITE
CRTD22702-6B 6 PFA/PFA 7 / 0.2 mm 3.3mm Round BLACK
CRTD22702-3D 3 PFA/PFA 7 / 0.2 mm 2.6mm Round WHITE
CRTD252702-3-B 3 PFA/TinCu/PFA CU TIN 7 / 0.2 mm 4.1mm Round BLACK
CRTD252702-4-B 4 PFA/TinCu/PFA CU TIN 7 / 0.2 mm 4.1mm Round BLACK
CRTD22702-3B 3 PFA/PFA 7 / 0.2 mm 3.3mm Round BLACK
CRTD22702-4B 4 PFA/PFA 7 / 0.2 mm 3.3mm Round BLACK

Silicone Temperature up to 260°C

Silicone RTD Cable
Part No. Cores Insulation Screen Conductors OD Construction Outer Jacket Colour
CRTD66702.3 3 Silicone / Silicone - 7 / 0.2 mm 3.8 mm Twisted Brick Red
CRTD66702-4-4.8 4 Silicone/Silicone 7 / 0.2mm 4.8mm RED RAL3000
CRTD66702-2 2 Silicone/Silicone 7 / 0.2mm 4.6mm RED BRICK
CRTD667016-6 6 Silicone/Silicone 7 / 0.2mm 5.1mm White
CRTD656-3 3 Silicoine/Screen/Silicone 7 / 0.2mm 4.7mm RED BRICK

PFA Single Conductors

PFA Single Conductors
Part No. Insulation Screen Conductors Insulation Colour OD
CC42202 Tin Plated Cu 1 x 0.2 mm PFA White 0.5 mm
CC42202-R Tin Plated Cu 1 x 0.2 mm PFA Red 0.5 mm
CC42205 Tin Plated Cu 1 x 0.5 mm PFA White 0.95 mm
CC42205-R Tin Plated Cu 1 x 0.5 mm PFA Red 0.95 mm
CC42702 Tin Plated Cu 70.2 mm PFA White 1 mm
CC42702-R Tin Plated Cu 70.2 mm PFA Red 1 mm

PTFE Tubing

Please send your enquiries with specified dimensions for PTFE tubes to [email protected].

PTFE Tubing
  Outer Ø Inner Ø Length Colour
  3 mm 2.5 mm Specify White
  4 mm 3.5 mm Specify White
  6 mm 5 mm Specify White
  8 mm 6 mm Specify White
  1/4" 5.35 mm Specify White
  3/8" 8.5 mm Specify White

Thermocouple Bare Wire

Please send your enquiries with specified dimensions for PTFE tubes to [email protected].

PTFE Tubing
  T/C Type Pair Diameter Length
  K KP + KN 1 mm Specify
  K KP + KN 1.5 mm Specify
  K KP + KN 2 mm Specify
  K KP + KN 3 mm Specify
